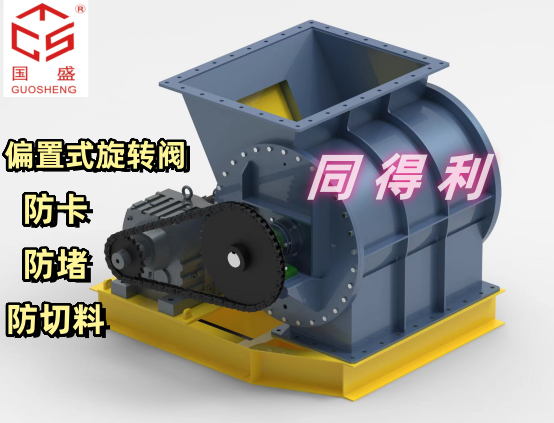

進口品牌德國科貝隆Coperio**，zeppeli**澤普琳、荷蘭DMN、格律克Gericke、威埃姆WAMGROUP、芬蘭BMH、美國派力特隆pelletron旋轉閥 。常州同得利專注研發生產高端旋轉閥，擁有多年的研發生產/定制非標旋轉閥卸料閥的經驗，口碑好，旋轉閥性能優越，讓物料更流暢，使用更精久。

　　國產選大品牌-國盛商標常州同得利，專 利技術，匠心質造。工匠精神是中國的瑰寶，它是我們民族文化的結晶，更是中華民族的靈魂所在。【電話/微信咨詢：陳經理18068546632】

　　以下DMN旋轉閥均可替代。

　　DMN AL/AXL系列：

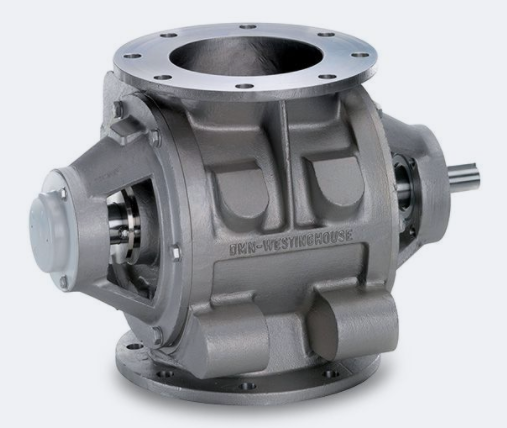

　　DMN-WESTINGHOUSE has designed The AL and AXL rotary valves for many applications in the metering and pneumatic conveying of products in powder and granular form.The AL valves are available in 10 consecutive sizes from 100-500mm (4"-20"), covering a capacity range of the rotor from 0.8-230 litre per revolution at 100% filling. In the 400-500 sizes the valves can also be supplied with square in- and outlet (type OS). The AXL valves are available in 4 sizes from 200- 350. capacity range of the rotor from 5.5-34 litre per revolution at 100% filling. The AXL size corresponds with the dimension of the inlet flange.

　　AL/AXL DAIRY：

　　The AL-AXL Dairy rotary valves are designed for use in the food, pet food, chemical, and pharmaceutical industries where very high standards apply.The AL Dairy valves are available in 6 sizes, covering a capacity range from approximately 2.5 to 58 liter per revolution at 100% filling. The AXL valves are available in 4 sizes from 200-350. capacity range of the rotor from 5.5-34 liter per revolution at 100% filling. The AXL size corresponds with the dimension of the inlet flange.

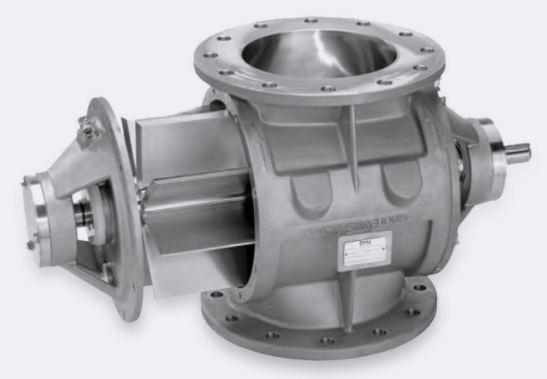

　　AL/AXL DAIRY MZC WITH SLIDE RAILS：

　　The MZC rotary valves have been widely used in sanitary applications (Dairy execution) as well as many other applications.Supporting bars for easy removal of rotor and end cover.Direct drive or chain drive.Narrow, flexible and maintenance-free construction with direct drive.Increased safety at work.Explosion shock resistant up to 10 bar g.【電話/微信咨詢 替代方案：陳經理18068546632】

　　DMN AML系列：

　　The AML rotary valves have been designed for many applications in the metering and pneumatic conveying of products in powder and granular form. The AML valves can also be used as a transition piece from round to square and vice versa. The AML valves are available in 7 consecutive sizes from 100-400. covering a capacity range of the rotor from 0.8 to 58 litre per revolution at 100% filling. Drive options include chain, direct, air and hydraulic drive.

　　DMN USAL系列：

　　The USAL rotary valves have been designed by DMN-WESTINGHOUSE for many applications in the metering and pneumatic conveying of products in powder and granular form. The USAL valves are available in 3 consecutive sizes: 200. 250 and 300 covering a capacity range of the rotor from 5.5 to 19 liter per revolution at 100% filling.

　　BLOWING SEAL - BL/BXL/BXXL:

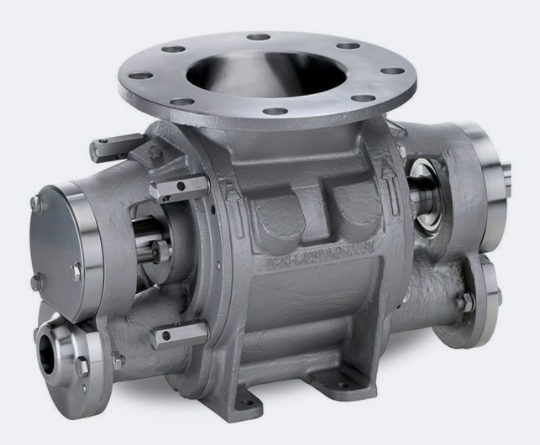

　　BL and BXL blow through rotary valves have been designed by DMN-WESTINGHOUSE for many applications in the metering and pneumatic conveying of products in powder and granular form. The MZC valves are easy detachable in a few minutes. The BL valves are available in 6 consecutive sizes from 150-350. rotor capacity ranging from 2.5-58 litre per revolution at 100% filling. The BXL valves are available in 4 sizes from 200-350. capacity range of the rotor from 5.5-34 litre per revolution at 100% filling. The BXL size corresponds with the dimension of the inlet flange. The BXXL valve sizes are available upon request.

　　BLOWING SEAL- BL/BXL/BXXL DAIRY:

　　The BL-BXL Dairy blow through rotary valves have been designed for use in the food, pet food, chemical and pharmaceutical industries where very high standards apply. The BL Dairy valves are available in 6 sizes, covering a capacity range from approximately 2.5 to 58 litre per revolution at 100% filling. The BXL valves are available in 4 sizes representing a capacity range of the rotor from 5.5- 34 litre per revolution at 100% filling. The BXL size corresponds with the dimension of the inlet flange. The body and end covers are made from AISI 316 stainless steel (DIN 1.4408). The rotor is made from AISI 316L stainless steel (DIN 1.4404). For special applications internal and external mirror polishing of the valve is possible. For the BL-BXL valves tri clamp connections are also available.【電話/微信咨詢  替代方案及價格：陳經理18068546632】

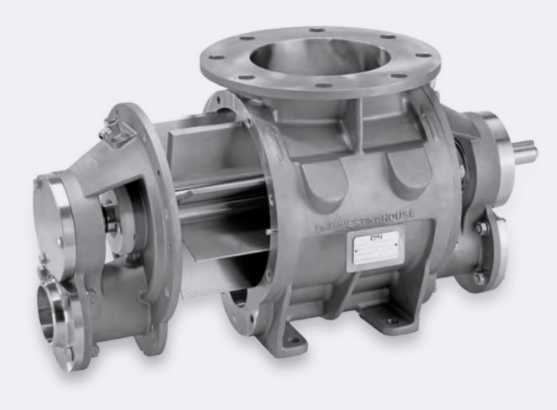

　　BLOWING SEAL BL/BXL/BXXL DAIRY MZC WITH SLIDE RAILS:

　　The MZC rotary valves have been widely used in sanitary applications (Dairy execution) aswell as many other applications. The unit has an easily detacahble rotor which can be removed within a few minutes to facilitate thorough inspection and cleaning. Supporting rails for easy removal of rotor and end cover.Direct drive or chain drive.

　　DMN MLD系列：

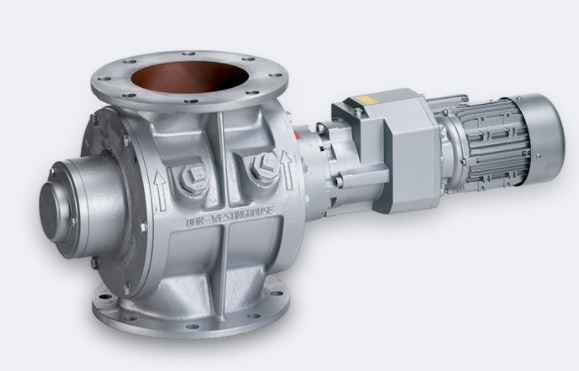

　　The MALD and MLD medium-duty valves are suitable for applications where valves with outboard bearings would be over specified.Compact design.Reliable construction.Standard fitted with Nord in-line direct drive.Pressure surge proof up to 10 bar g.Flange drillings available to PN 10. ANSI 150.

　　DMN MALD系列：

　　The MALD and the MLD medium-duty valves are suitable for applications where valves with outboard bearings would be over specified. Standard fitted with Nord in-line direct drive,Pressure surge proof up to 10 bar g.Flange drillings available to PN 10. ANSI 150.Direct inverter control.Sheared angle inlet.

　　DMN SAL系列：

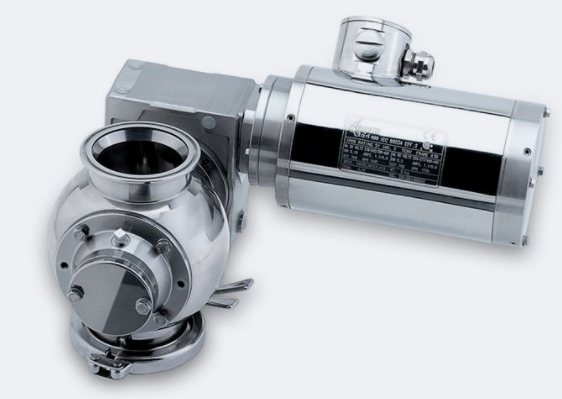

　　The SAL (Sanitary Airlock) is a low capacity rotary valve with a highly polished surface on both the inside and outside. The SAL is specially designed for metering purposes in applications where stricht hygienic standards are required.The SAL is available in 5 sizes: DN50. DN65. DN80. DN100 and DN150. with capacities of 0.07. 0.13. 0.25. 0.8 and 2.5 litre per revolution at 100% fi lling.

　　GL – GRANULAR ROTARY VALVE：

　　The GL rotary valves are specially designed for gravity feeding and pneumatic conveying of granular products. Te full end disc-rotor is made of 316 stainless steel. The GL valves come in 5 sizes, covering a capacity range from approximately 5 to 79 liters per revolution at 100% filling.

　　DMN DL系列：

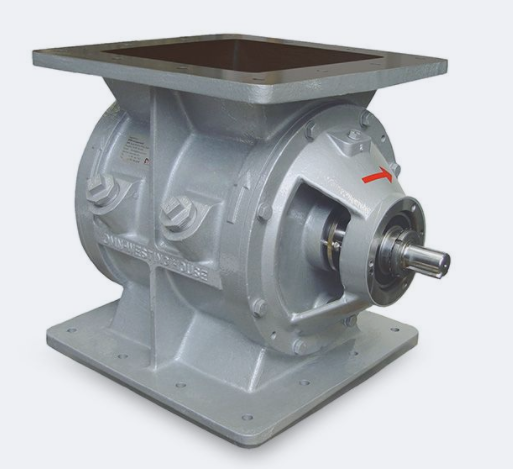

　　The DMN-WESTINGHOUSE DL dust lock is of a specially designed for filter applications. It can be used with dust filters, cyclones, product separators and dosing systems. The universal flanges are on both sides of the valve are drilled to PN10 and can be used for round-round, square-square and square-round connections. The DL range of valves are available with inlet sizes of 200. 250 and 300 mm and respective capacities of 6. 8.5 and 19 ltr/rev.【電話/微信咨詢  替代方案及價格：陳經理18068546632】

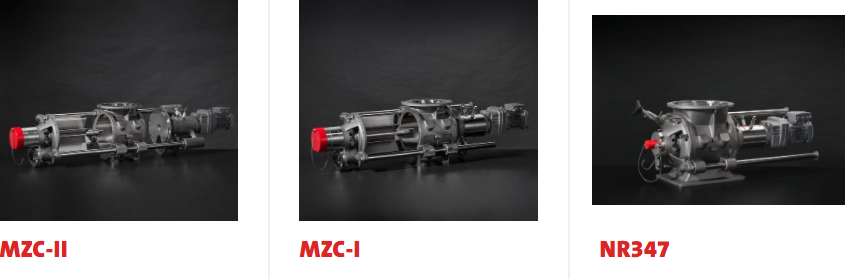

　　DMN MZC-II  MZC-I  NR347：

　　常州同得利擁有多年的研發生產/定制卸料閥旋轉閥的經驗，專 業替代進口德國品牌科倍龍Coperio*旋轉閥，zeppeli**澤普琳、荷蘭DMN、格律克Gericke、威埃姆WAMGROUP、芬蘭BMH、美國派力特隆pelletron旋轉閥 。我公司專 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥，快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及管網正負壓狀態下的卸料。

《掃二維碼-添加 陳經理 微信-咨詢 替代荷蘭DMN旋轉閥方案及價格》
