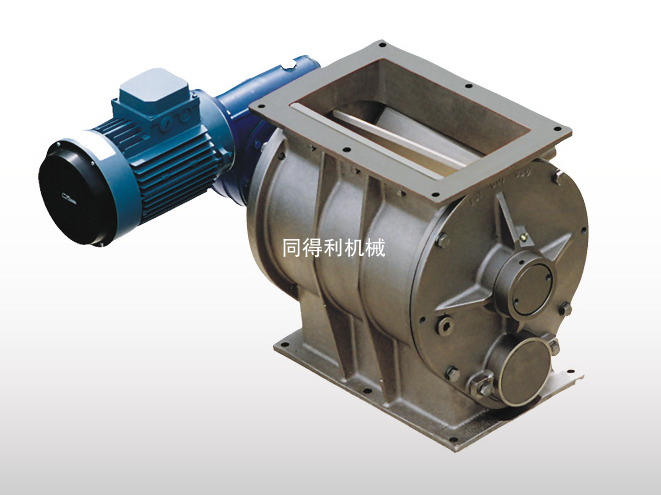

    星型卸料器用于安裝在負壓下工作的卸料器的排料口處，上部接受卸料器排出的物料，依靠旋轉的葉輪起著輸送物料的作用，又擔負著密封的作用，防止氣力輸送過程中從排料口吸入空氣，卸料器的正常排料做為一種特殊的卸料裝備，在清潔和清洗工作中起到了很大的作用。The star shaped unloader is used to be installed at the discharge port of the unloader working under negative pressure. The upper part receives the material discharged by the unloader, and relies on the rotating impeller to transport the material and also plays a sealing role to prevent air from being sucked in from the discharge port during pneumatic conveying. The normal discharge of the unloader, as a special unloading equipment, plays a great role in cleaning and washing work.鋰電/化工卸料閥-陶瓷卸料閥由本公司自主研制，已取得多項國家專 利。本品適用于不可接觸金屬物料，多用于鋰電正極原料的生產制作。陶瓷閥的優點是超強耐磨，而且不會對鋰電材料造成污染，是新能源大開發進程中一大助力。陶瓷卸料閥類型：滑桿式/側快拆/耐高壓/耐高溫/鎖風式/風送滑桿式/防卡型卸料閥(總有一款適合您的需求)【電話/微信咨詢：陳經理18068546632】陶瓷星型卸料閥主要結構：外殼金屬;物料接觸部分：內襯陶瓷(也可尼龍、四氟、特氟龍、聚氨酯等)。陶瓷星型卸料閥主要用于輸送鋰電池正極材料，負極材料，磷酸鐵鋰，三元材料等物料的輸送和卸料，可以提高生產效率，保證物料的質量的和穩定性，同時滿足環保和安全的要求。陶瓷星型卸料閥特點：耐高溫、耐磨、使用壽命長。陶瓷星型卸料閥技術研發于2015年，批量生產于2017年，2020年更新第3代陶瓷星型旋轉閥，目前有陶瓷星型旋轉閥專 利。我們購買星型旋轉卸料閥輸送物料時，如何才能選擇合適的廠家?選擇實力強的廠家，一般來說旋轉卸料閥廠家可以見證產品的質量，實力強的廠家可為客戶提供更好的產品質量和服務。要看廠家的實力、信譽、規模。同得利秉承以下服務承諾:服務目標：服務質量贏得用戶滿意。嚴格控制對產品性能的檢測，待產品被確認合格后再出廠發貨。提供的產品符合報價文件承諾和所簽合同規定的技術要求。物美價廉，具有輸送系統完全密閉，可以避免輸送物料的受潮、污損或混入異物等優勢。常用于鋰電/化工/藥材/食品/塑料/鋼廠/電廠/礦山/水泥/環保等行業?！倦娫?微信咨詢：陳經理18068546632】全新的鑄造方法用于改善外表面光潔度和鑄造完整性，閥體外殼強度更高。      《掃二維碼-添加 陳經理 微信-咨詢陶瓷星型卸料閥》Tongdeli adheres to the following service commitments:Service objective: To achieve customer satisfaction through high-quality service.Strictly control the testing of product performance, and only ship the product after it is confirmed to be qualified.The products provided meet the technical requirements as promised in the quotation documents and as stipulated in the signed contract.Affordable and cost-effective, with a completely sealed conveying system that can prevent moisture, dirt, or foreign matter from entering the conveyed material. Commonly used in industries such as lithium batteries, chemicals, medicinal materials, food, plastics, steel mills, power plants, mines, cement, and environmental protection.The new casting method is used to improve the surface smoothness and casting integrity, resulting in higher strength of the valve body shell.

刮板式旋轉閥主要用于鋼廠、電廠、水泥、礦山原料輸送。刮板式旋轉閥適用于具有吸濕性和物料架橋結塊或帶有靜電吸附性的粉粒物料。閥體下部的旋轉刮板自動將附在轉子料斗內的物料刮除。刮板旋轉閥閥體上開有清理口便于定期清除內部的物料，設備帶扭力保護器。提供鏈驅動、馬達直連驅動?！倦娫?微信咨詢：陳經理18068546632】刮板旋轉閥常見材質：碳鋼、不銹鋼系列、鋁合金、鈦合金、陶瓷系列等。按客戶需求定制。             《掃二維碼-添加 陳經理 微信-咨詢產品》Scraper type rotary valves are mainly used for conveying raw materials in steel mills, power plants, cement, and mines.Scraper type rotary valve is suitable for powder materials with hygroscopicity, bridging and agglomeration of materials, or electrostatic adsorption.The rotating scraper at the bottom of the valve body automatically scrapes off the material attached to the rotor hopper.The scraper rotary valve body has a cleaning port for regular removal of internal materials, and the equipment is equipped with a torque protector.Provide chain drive and motor direct drive.Common materials for scraper rotary valves include carbon steel, stainless steel series, etc. Customize according to customer needs.

　　風送式旋轉卸料閥壓力范圍：2kg/cm2系統壓力或壓差?！　≡龃笕肟?出口：正方形，沒有截面尺寸對料流的限 制從而可達高產量?！　∑胀ㄐ停航Y(jié)構緊湊，占用空間小?！　≥S承外置式：有效的防止粉塵侵入軸承，增大設備適應較高溫度的使用范圍?！　◎?qū)動方式：鏈驅動/馬達直聯驅動?！　?dòng)力配置：擺線針輪減速機、Y系列電機(可按客戶指定動力配置)?！　〔馁|(zhì)選項：鈦合金、鋁合金、陶瓷、不銹鋼、碳鋼等?！　〕Ｖ萃美麢C(jī)械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粉料、超微粉體等?！　ressure range of pneumatic rotary discharge valve: 2kg/cm 2 System pressure or differential pressure.　　Increase the inlet/outlet: square, with no restrictions on material flow due to cross-sectional size, achieving high production.　　Normal type: compact structure, occupying small space.　　External bearing type: effectively prevents dust from entering the bearing, increasing the equipment's adaptability to higher temperature usage range.　　Drive mode: chain drive/motor direct drive.　　Power configuration: cycloidal pinwheel reducer, Y-series motor (can be configured according to customer specifications).　　Material options: titanium alloy, aluminum alloy, ceramic, stainless steel, carbon steel, etc.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production, and customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valve can handle various types of particles, flakes, blocks, powders, and ultrafine powders in industries such as lithium batteries, steel mills, power plants, cement, mines, environmental protection, plastics, chemicals, food, and pharmaceuticals.

　　常州同得利機械廠與多家大型、中型鋼鐵公司的焦化廠合作開發研制了國產的干熄焦旋轉密封閥，獲得用戶的好評。　　干熄焦旋轉密封閥(又稱旋轉排出閥、格式密封閥)是焦化廠干熄焦工程中的關鍵設備，安裝在干熄爐底部，入料口與振動給料器連接、出料口與排焦溜槽相連接。其作用是把振動給料器定量排出地焦炭在密閉狀態下連續排出。既能連續定量地排料，又具有良好的密封性及耐磨性?？梢杂行У乜刂聘上t內的循環氣體和粉塵的外泄，穩定干熄爐內循環氣體的壓力，是現代先進干熄焦工藝必選的關鍵設備。【電話/微信咨詢：陳經理18068546632】干熄焦旋轉密封閥結構特點：　　旋轉密封閥安裝于干熄焦裝置的zui下端出口處。主要由閥體、轉子、密封副、下料槽、機架、臺車、驅動裝置和自動給脂裝置等組成。功能是保證連續定量排焦并同時將系統內外分隔，穩定干熄爐系統壓力。　　旋轉密封閥工作原理，旋轉過程中，焦炭經各隔倉由上至下均勻排出，調整料倉的大小及轉子的轉速可適應不同料流量。為減少干熄爐內氣體介質外漏，需控制轉子刃與機體內壁的間隙，間隙越小，干熄爐內氣體介質外漏量也就越小。轉子端面密封采用金屬硬密封結構。密封副為一組金屬圓環，由彈簧壓緊并能自動補償間隙誤差。為防止粉塵進入，此處設計有氣體輔助密封，可保證端面密封裝置正常運行?！　≡撛O(shè)備的密封副為多瓣環形結構，系軟硬密封結合的形式，并采用彈簧輔助壓緊，能夠在運轉過程中進行誤差間隙自動補償，保證密封性能。密封副之間由自動給脂裝置定量給脂保證潤滑，zui大限度地減小了磨損。并在閥體兩側軸承箱內通入高于干熄焦塔內壓力的氮?dú)饣蚩諝廨o助密封，使干熄爐內高溫(約200V)含塵氣體不能進入軸承箱，改善了軸承和密封環的工作環境，能夠有效地防止軸承溫升超高，減少密封環磨損?！　闈M足連續密閉排焦功能，干熄焦旋轉密封閥轉子內部為12個葉片，轉子兩端支撐在閥體軸承箱內，為防止焦粉進入軸承箱，轉子及閥體相應部位設置軟硬密封機構，形成承料部位與軸承箱隔離空腔，并在此部位通入氮?dú)獯祾?、冷卻，轉子驅動軸端與行星擺線針輪減速機連接;閥體上口內設彈簧倉，能有效防止卡料，閥體下口與下料槽相連;下料槽設有積窩，可存積焦炭，使焦炭在排出過程形成料磨料，使落料盡量不接觸機體，zui大限度地減小磨耗，以保護基體鋼結構?！　「上ń剐D(zhuǎn)密封閥驅動方式有兩種：一種行星減速機通過聯軸器與轉子相連直接驅動轉子旋轉(見圖4);另一種行星減速機通過鏈傳動帶動轉子旋轉。減速機電動機可采用變頻調速(根據客戶需求)，調速范圍2～6r/rain，實現設備軟起動、過載保護等功能，減緩沖擊。鏈傳動旋轉密封閥設有斷鏈檢測裝置，當鏈條斷裂時，能自動報警?！　￠y體、轉子、下料槽和驅動裝置組裝成一體置于臺車上。臺車下設有4個車輪，整體設備安裝和拆卸非常方便;設備就位后用止擋座固定在工位上。檢修時沿地面鋪設的軌道推出至檢修平臺。此外為安裝方便在旋轉密封閥的上下斷面還設置了補償器。在軸承及閥體與轉子密封部位設有多個潤滑點，自動潤滑裝置定時定量提供潤滑脂?！　?.干熄焦密封旋轉閥材料選擇：【電話/微信咨詢：陳經理18068546632】　　由于旋轉密封閥特殊的工作環境，材料選擇直接關系到旋轉密封閥產品能否長期可靠運行。在排焦工作狀態，焦炭對機體和轉子造成強烈磨損，需安裝高耐磨襯板保護。干熄焦旋轉密封閥內腔與焦炭接觸面均裝有耐磨襯板。不同部位材料也不同：轉子刃口采用特種高硬度、高耐磨、高碳高釩高速工具鋼;轉子行星格腔表面、閥體內表面及下料槽內表面均采用高耐磨板t閥門入料采用高鉻鑄鐵。密封副為高耐磨軸承合金和耐磨鋼軟硬搭配;閥門主體采用低碳合金結構鋼?！　〕Ｖ萃美M(jìn)國內外先進的設計制造技術，專注定制-研發-生產旋轉閥，關風機，卸料閥，鎖氣閥?！　”緩S地處經濟發達的龍城常州，交通便利，滬寧高速、沿江高速、錫宜高速、新長鐵路，為本廠制造了得天獨厚的地理優勢?！　”緩S堅持"質量過硬，用戶滿意"的宗旨，愿與您攜手共進，誠信合作，互惠互利，共同發展。             《掃二維碼-添加 陳經理 微信-咨詢產品》　　Changzhou Tongdeli Machinery Factory has collaborated with coking plants of multiple large and medium-sized steel companies to develop domestically produced rotary sealing valves for dry quenching coke, which have received high praise from users.　　The rotary sealing valve (also known as the rotary discharge valve or format sealing valve) is a key equipment in the dry quenching project of a coking plant. It is installed at the bottom of the dry quenching furnace, and the feeding port is connected to the vibrating feeder, while the discharging port is connected to the coke discharge chute. Its function is to quantitatively discharge the coke from the vibrating feeder and continuously discharge it in a closed state. It can continuously and quantitatively discharge materials, and has good sealing and wear resistance. It can effectively control the leakage of circulating gas and dust inside the dry quenching furnace, stabilize the pressure of circulating gas inside the dry quenching furnace, and is a key equipment that must be selected for modern advanced dry quenching technology.

陶瓷卸料閥系列：·適用于是0.8-3kg/cm2系統壓力或壓差?！ぴO(shè)置排氣口（正壓輸送時選用）將葉輪旋轉帶出的氣體通過排氣口送至排期裝置，提高填充效率?！O小的間隙和特殊的密封裝置保持設備的可靠運行?！ぽS承外置式安裝、經久耐用、性能優異?！ぬ峁╂滘?qū)動、直聯驅動多種安裝方式?！ぴ撔吞沾尚读祥y機組進出口安裝尺寸一致，是根據不同的安裝要求而專門設計的機型?！は潴w材質主要有：不銹鋼、鋁合金·內襯材質主要有：陶瓷、四氟、PVC·內噴涂材質有：陶瓷粉、碳化鎢、特氟龍。【電話/微信咨詢：陳經理18068546632】          【電話/微信咨詢：陳經理18068546632】　　Ceramic discharge valve series:　　·Applicable to 0.8-3kg/cm 2 System pressure or differential pressure.　　·Set up an exhaust port (selected for positive pressure conveying) to send the gas carried out by the impeller rotation to the scheduling device through the exhaust port, improving the filling efficiency.　　·The minimal gap and special sealing device ensure the reliable operation of the equipment.　　·External installation of bearings, durable, and excellent performance.　　·Provide multiple installation methods for chain drive and direct drive.　　·This type of ceramic discharge valve unit has consistent inlet and outlet installation dimensions and is specially designed according to different installation requirements.　　·The main materials of the box include stainless steel and aluminum alloy　　·The main lining materials include ceramics, PTFE, and PVC　　·The internal spraying materials include: ceramic powder, tungsten carbide, and PTFE          《掃二維碼-添加 陳經理 微信-咨詢產品》

本產品適用于易粘接物料、腐蝕性物料的卸料，多用于化工企業。

　　常州同得利擁有多年的研發生產/定制旋轉閥的經驗，匠心質造，口碑好，專 業替代進口意大利威埃姆WAMGROUP旋轉閥。旋轉閥可分為：普通型，耐高壓型，外裝耐高溫耐高壓型，快速清洗型，定量型?！　　就美渴称?制藥/化工/塑料原料輸送旋轉閥常見分類有：風送滑桿旋轉閥，側快拆旋轉閥，滑桿式旋轉閥，風送式旋轉閥，防卡式旋轉閥，耐壓型旋轉閥，哈氏合金旋轉閥，鈦合金旋轉閥，合金旋轉閥，鋁合金旋轉閥，陶瓷旋轉閥，陶瓷氧化鋁旋轉閥，四氟旋轉閥，不銹鋼旋轉閥。 鋼廠/電廠/水泥/環保/礦山原料輸送旋轉閥常見分類有：偏置式旋轉閥，刮板式旋轉閥，耐高溫旋轉閥，鎖風旋轉閥，雙葉輪旋轉閥，剛性旋轉閥，螺旋輸送機：1、破拱.鎖氣.防沖料.組合螺旋送料機;2、雙向螺旋輸送機;3、精準喂料螺旋送料機;4、子母螺旋輸送機;5、提升螺旋輸送;6、雙螺旋輸送機;7、滑桿快拆螺旋送料機;8、高溫螺旋輸送機;9、水冷式螺旋輸送機?！　∵M(jìn)口品牌意大利威埃姆WAMGROUP 價格貴，交期長怎么辦？WAMGROUP威埃姆旋轉閥系列：REC,RES,RV,RVR,RVC,RVS,RWN。WAMGROUP威埃姆螺旋輸送機系列：CX,CAO,CA,MSC,CLO,CLOS,UC,BU,MT,HT,CMC,TU,THF,TCF,ES,TXF,TX,TE,TP,SU,SPL,SVE,PR,ESV,VE,SSC。找國產替代，選大品牌-國盛商標常州同得利，專 利技術，匠心質造。　　【同得利】可以替代全球一線品牌旋轉閥：【電話/微信咨詢：陳經理18068546632】　　威埃姆滑桿式旋轉閥：REC - RES系列：　　SlideOut Rotary Valves are engineered with a continuously revolving rotor featuring two compartments, both of which are filled with material simultaneously via the top inlet.　　The valves come in two distinct versions: REC and RES.　　Standard rotor with integrated shaft　　Drive unit mounted on rotor shaft　　Air-purged shaft seal　　Feed rate: 5-10-20-35 litres per revolution (0.17-0.35-0.70-1.2 cu ft/rev) for 2”, 3”, 4” and 5” conveying pipes　　Working temperature: -40 ~ 150 °C (-40 ~ 302 °F)　　Working pressure: up to 1 bar (14 psi)　　WAMGROUP威埃姆直通型旋轉閥 RV - RVR系列：　　RV旋轉閥為多用型，用于控制來自料倉、料斗、氣力輸送系統、過濾器布袋或旋風分離器的粉末或顆粒狀物料的卸料及喂料?！咎娲桨?-電話/微信咨詢：陳經理18068546632】　　進料速度：2.2~19.5 l/轉(0.08 ~ 0.7 cu ft 每轉)　　閥體采用鑄鐵或304/316不銹鋼(僅 限RV)　　對于粘性物料或進料速率降低的情況，采用隔間插片　　油密封、氣密封或空氣清洗式密封　　帶固定齒輪箱的直接驅動　　帶變速箱的直接驅動　　帶鏈傳動的同軸驅動　　WAMGROUP威埃姆直通型旋轉閥 RVC系列：　　RVC直通型旋轉閥的組成為一個鑄鐵或不銹鋼的筒形外殼，一個水平安裝的轉軸，軸上有一定數量截面形狀為V形的隔板，一個驅動裝置，以及有一層保護套的兩軸端。【替代方案--電話/微信咨詢：陳經理18068546632】　　喂料速度：5-9-14-20-38升/轉(0.17-0.3-0.5-0.7-1.3cu ft/轉)　　定速轉軸速度：10/20/30 r.p.m　　變速轉軸速度;4-22 r.p.m　　外殼：鑄鐵或304/316不銹鋼　　軸上的密封件：耐高溫　　驅動：直接驅動，可變速齒輪箱電機驅動;用鏈傳動裝置來進行驅動;無驅動器。　　帶風扇冷卻裝置的電機　　電機繞組控溫裝置　　葉片上有刮刀　　WAMGROUP威埃姆氣力輸送旋轉閥 RVS系列：　　RVS氣力輸送旋轉閥的組件有：一個鑄鐵或不銹鋼的筒形外殼;一根水平放置的轉軸，軸上有一定數量、截面形狀為V型的傾斜隔間;一個驅動裝置及有一層保護層的每個端部。【替代方案--電話/微信咨詢：陳經理18068546632】　　喂料速度：5-9-14-20-38升/轉(0.17-0.3-0.5-0.7-1.3cu ft/轉)　　轉軸：轉軸上配有斜面葉片，葉片上帶有刮刀(Viton?、Vulkolan、Teflon?)　　定速轉軸速度：10 / 20 / 30 r.p.m.　　變速轉軸速度：4 – 22 r.p.m.　　外殼：鑄鐵或304/316不銹鋼　　軸密封件：潤滑油脂，氣體/凈化氮?dú)饷芊?，或耐高溫　　帶風扇冷卻裝置的電機　　電機電熱調節器　　葉片上有刮刀　　WAMGROUP威埃姆用于木屑顆粒的直通型旋轉閥 RWN系列：　　RWN旋轉閥是控制木屑或來自碎煤機，料倉和料斗的木屑的卸料和進料的理想解決方案。RWN旋轉閥專為從料倉、料斗、氣力輸送系統、布袋除塵器，或旋流器定量排放和填充木屑顆粒或碎屑而設計。旋轉刀具形狀和進料口處的切割閥板，保證所有出現的生物燃料混合物將被切碎?！　∮糜?種旋轉速度的不同驅動(10. 20 或 30 r.p.m).　　WAM法蘭標準件，保證與其他WAM設備的兼容性　　結構緊湊，經久耐用　　裝在進料口的HARDOX閥板切割木屑，避免阻塞　　用于特殊型號的操作溫度：-20℃~150℃(-4℉~300℉)　　軸封采用油脂、空氣或吹氣密封　　帶齒輪電機的直接驅動【替代方案--電話/微信咨詢：陳經理18068546632】　　WAMGROUP威埃姆螺旋輸送機/喂料機：　　WAMGROUP威埃姆旋轉閥，螺旋輸送機均可替代：       【替代方案--電話/微信咨詢：陳經理18068546632】                      《掃二維碼-添加 陳經理 微信-咨詢替代方案》

　　剛性旋轉閥/卸料閥/旋轉卸料器/旋轉供料器常用于難處理的物料, 適用于粉料、顆粒和磨料(堅硬物料、塊狀物料、高溫物料)的旋轉卸料閥。大型號旋轉閥，為高流量設計，適用于重負荷和嚴苛的應用環境，壓力可達2 bar(g) [20 psi(g)]可抵抗嚴苛的沖擊力，承受高溫達300℃，壓力范圍：1.4 巴 [20 psi(g)]軸封：聚四氟乙烯復合密封，空氣吹掃。外側軸承：通過密封和物料掉落口將物料和軸承隔開?！　傂孕D(zhuǎn)閥主要用于鋼廠、電廠、水泥、礦山等行業。葉輪穩定性好、圓滑過度、無夾角、扭矩更大?！倦娫?微信咨詢：陳經理18068546632】　　1、結構緊湊：采用行星轉動原理、純銅電機，輸入輸出在同一軸線上，而且有與電機直聯一體的獨特性，體積小，重量輕，因而結構緊湊造型美觀新樣?！　?、耐磨性高：運行可靠平穩，噪音低，故障少，壽命長，耐磨性高。　　3、過載能力強：卸料器具有過載能力強，耐沖擊慣性力矩小，適用于啟動頻繁和正反轉?！　?、使用壽命長：軸承、齒箱、遠離閥體避免高溫灰塵的影響，前后密封性能好，防止灰塵外泄，延長機動件，潤滑系統的使用壽命。　　5、支持定制/替代進口品牌：用戶如有特殊規格要求，可以按照客戶要求定做?！倦娫?微信咨詢：陳經理18068546632】　　常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等?！倦娫?微信咨詢：陳經理18068546632】            《掃二維碼-添加 陳經理 微信-咨詢剛性旋轉閥》　　Rigid rotary valves/discharge valves/rotary unloaders/rotary feeders are commonly used for difficult to handle materials, suitable for rotary discharge valves of powders, particles, and abrasives (hard materials, block materials, high-temperature materials). Large rotary valve, designed for high flow, suitable for heavy loads and harsh application environments, with a pressure of up to 2 bar (g) [20 psi (g)], can resist harsh impact forces, withstand high temperatures up to 300 ℃, pressure range: 1.4 bar (g) [20 psi (g)], shaft seal: PTFE composite seal, air blowing. Outer bearings: Separate materials and bearings through seals and material drop ports.　　Rigid rotary valves are mainly used in industries such as steel mills, power plants, cement, and mining. The impeller has good stability, smooth transition, no angle, and greater torque.　　1. Compact structure: Adopting the principle of planetary rotation and a pure copper motor, the input and output are on the same axis, and it has the unique feature of being directly connected to the motor. It is small in size and light in weight, resulting in a compact structure and beautiful appearance.　　2. High wear resistance: reliable and stable operation, low noise, few faults, long service life, high wear resistance.　　3. Strong overload capacity: The unloader has strong overload capacity, low impact resistance inertia moment, and is suitable for frequent starting and forward and reverse rotation.　　4. Long service life: bearings, gearboxes, and valves are kept away from the valve body to avoid the influence of high temperature dust. The front and rear sealing performance is good, preventing dust leakage and extending the service life of motor components and lubrication systems.　　5. Support customization/substitution of imported brands: If users have special specifications requirements, they can customize according to their needs.

　　偏置式旋轉閥主要用于鋼廠、電廠、水泥、礦山等行業原料輸送卸料?！　∵m用于塊狀、顆料、片狀物料，起到很好的防卡防堵作用?！　》狼辛先肟谠O(shè)計：即便上游充滿物料也可安全啟動。　　偏置式進出料口設計：減少了物料的破碎與損壞?！　∪碌蔫T造方法用于改善外表面光潔度和鑄造完整性，閥體外殼強度更高?！倦娫?微信咨詢：陳經理18068546632】　　常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等。            《掃二維碼-添加 陳經理 微信-咨詢偏置式旋轉閥》　　Offset rotary valves are mainly used for raw material transportation and unloading in industries such as steel mills, power plants, cement, and mines.　　Suitable for block, particle, and sheet materials, it has a good anti jamming and anti blocking effect.　　Anti cutting material inlet design: Even if the upstream is filled with materials, it can be safely started.　　Offset inlet and outlet design: reduces material breakage and damage.　　The new casting method is used to improve the surface smoothness and casting integrity, resulting in higher strength of the valve body shell.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production/customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valves are capable of handling various types of particles, flakes, blocks, adhesives, powders, ultrafine powders, etc. in industries such as lithium batteries, steel mills, power plants, cement, mining, environmental protection, plastics, chemical, food, and pharmaceuticals.

　　不銹鋼防卡旋轉閥主要用于塑料、食品、化工、鋰電、礦山、環保行業原料輸送?！　♂槍?duì)顆粒、片狀、塊狀物料，實現不卡料、不堵料?！　》揽ㄐ托D(zhuǎn)閥主要材質：不銹鋼304-310、鋁合金、鈦合金、陶瓷系列等。　　壓力：2kg/cm2系統壓力或壓差?！　≡龃笕肟?出口：正方形和圓形?！　≥S承外置式：有效的防止粉塵侵入軸承，增大設備適應較高溫度的使用范圍。　　驅動方式：鏈驅動/馬達直連驅動口。　　動力配置：擺線針輪減速機、Y系列電機(可按需方指定動力配置)，排氣口增壓輸送時將葉輪旋轉帶出的高壓氣體通過排氣口送至排氣裝置，提高填充效率?！倦娫?微信咨詢：陳經理18068546632】　　旋轉閥氣密封裝置主要用于在氣力輸出系統中，?特別是在需要處理粉塵和小顆粒物料的場合。工作原理依賴于氣體密封技術，?通過保持一定的氣源壓力，?通常高于管道內壓力0.1個大氣壓，?從而在卸料閥內部形成正負壓差，?確保充氣的壓力大于內部物料的壓力，?從而實現有效的密封。?這種設計不僅提高了卸料閥的可靠性，?還能有效防止物料在輸送過程中的泄漏，?確保系統的正常運行。?【電話/微信咨詢：陳經理18068546632】        《掃二維碼-添加 陳經理 微信-咨詢不銹鋼防卡旋轉閥》　　Stainless steel anti seize rotary valves are mainly used for raw material transportation in the plastic, food, chemical, lithium battery, mining, and environmental protection industries.　　For granular, flake, and block materials, achieve no material jamming or blockage.　　The main materials of anti jamming rotary valve include stainless steel 304-310. aluminum alloy, titanium alloy, ceramic series, etc.　　Pressure: 2kg/cm 2 system pressure or pressure difference.　　Increase entrance/exit: square and circular.　　External bearing: effectively prevents dust from entering the bearing and increases the equipment's adaptability to higher temperatures.　　Drive mode: chain drive/motor directly connected to the drive port.　　Power configuration: Cycloid pinwheel reducer, Y-series motor (can be configured according to the power requirements specified by the demand). When the exhaust port is pressurized and transported, the high-pressure gas carried out by the impeller rotation is sent to the exhaust device through the exhaust port to improve the filling efficiency.　　The rotary valve air seal device is mainly used in pneumatic output systems, especially in situations where dust and small particle materials need to be processed. The working principle relies on gas sealing technology. By maintaining a certain gas source pressure, usually 0.1 atmospheres higher than the pressure inside the pipeline, a positive and negative pressure difference is formed inside the discharge valve to ensure that the inflation pressure is greater than the pressure of the internal material, thus achieving effective sealing. This design not only improves the reliability of the discharge valve, but also effectively prevents material leakage during transportation, ensuring the normal operation of the system.
